JP-8 DC servo deviation control system

Share

หมวดหมู่ : Deviation control system

Share

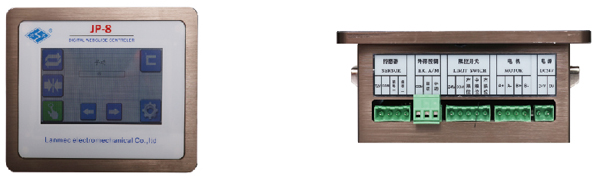

JP - 8 is a high performance full touch type rectifying controller, specifically applied to materials in winding, volume or position in its transmission process, automatic correction.The controller with the analog signal output sensor using such as ultrasonic, according to the detection signal operations out of the material in the winding, volume or position in its transmission process, automatic correction.The controller with the analog signal output sensor using such as ultrasonic, according to the detection signal arithmetic material location deviation size, timely correction action motor drive parameters, to achieve high-precision materials to correct position.Can also be used with photoelectric digital signal output, such as sensors, controlled rectifying motor forward, FanZhuanLai achieve the goal of rectification.

Panel size 150 mm x 120 mm hole size 130 mm * 98 mm * 100 mm
