JP - 5 photoelectric struggle system is the coil material in the production line in the struggle of the system, when the position offset transmitted with automatic detection, automatic tracking, automatic adjustment, etc.On paper, film, non-woven fabrics, aluminum foil material such as the heart line or edge tracking corrective to ensure the winding, cutting and neat.The system is widely used in light industry, textile, printing and dyeing, printing, strip steel, non-ferrous metal industry, etc.Its mechanical actuator USES synchronous motor, ball screw, sliding bearing parts, with advantages of simple structure, high precision and free maintenance, telescopic part adopts ball screw machinery built-in, put an end to the screw under bending moment and the effects of dust.

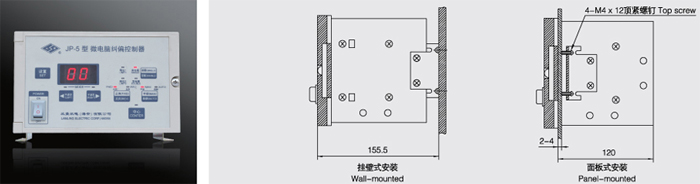

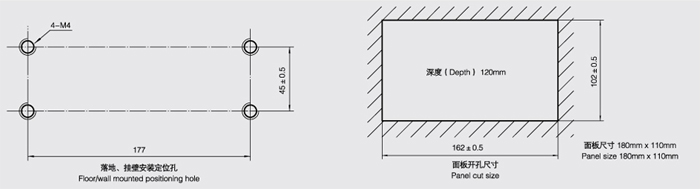

JP - 5 type microcomputer struggle controller installation dimension

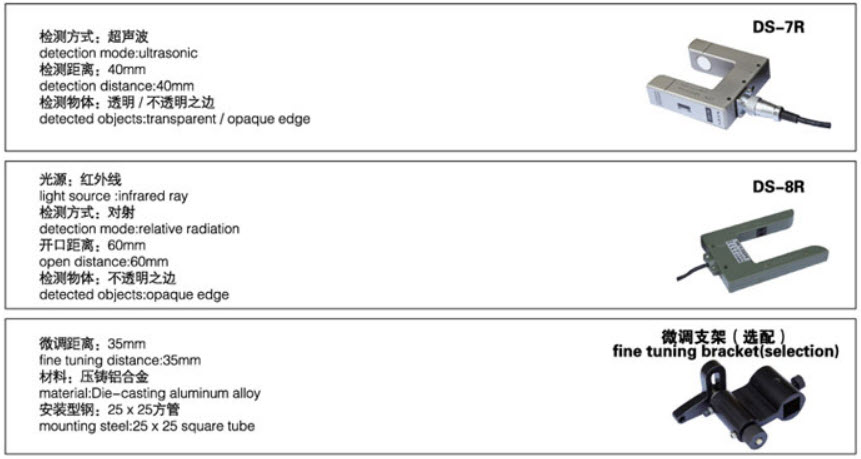

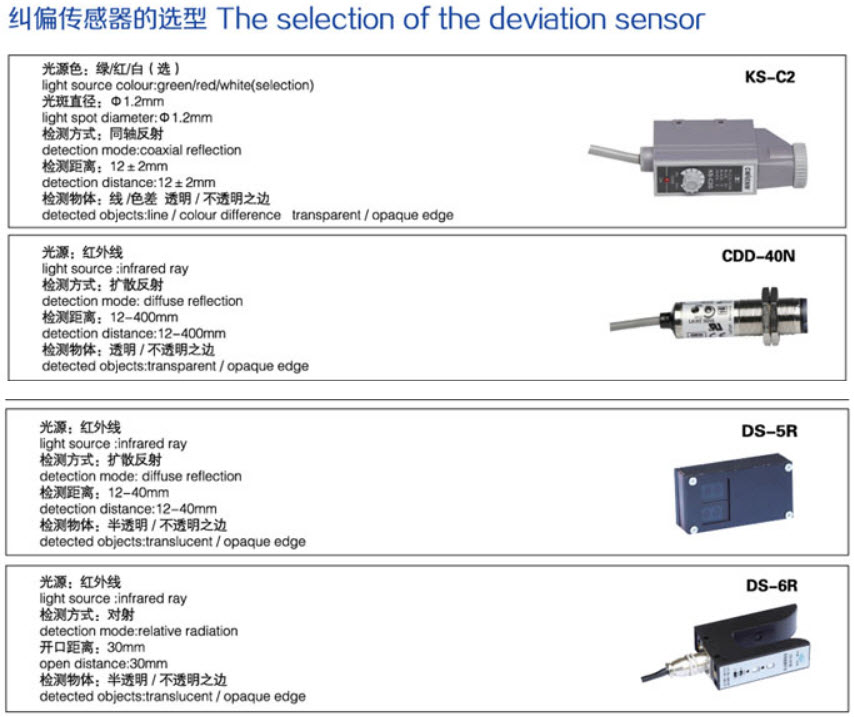

Input power AC220V plus or minus 10% 50 hz, can be used according to the production actual need to set the number of photoelectric sensor and the sensitivity of the system.
JP - 5 type mechanical actuators appearance and installation dimensions

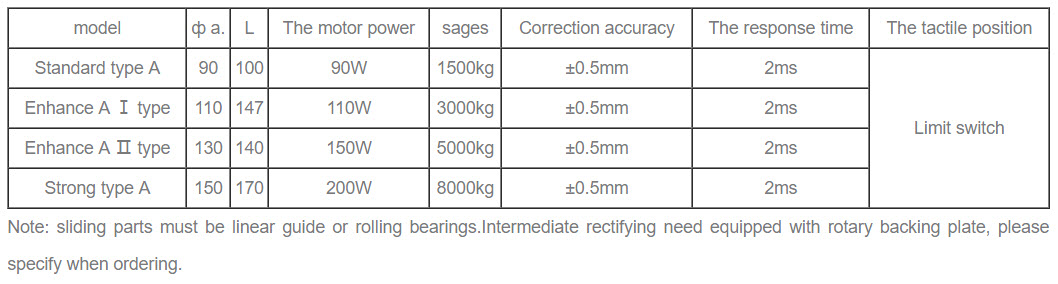

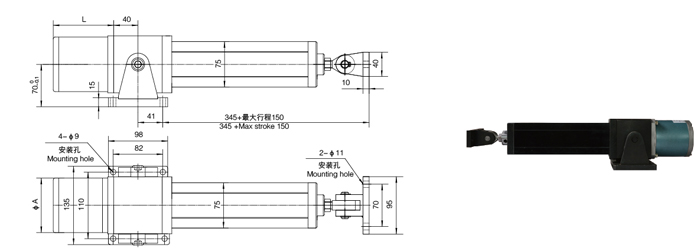

1. The standard type A, enhance Ⅰ type A, enhance Ⅱ type A

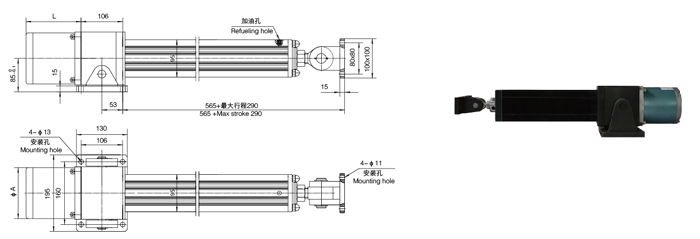

2. Strong type A
