TJL tension sensor

คุณสมบัติสินค้า:

หมวดหมู่ : LANMEC Tension control system

Share

STS TJL tension sensor is tension into micro displacement and micro a transfer into a micro voltage sensitive components.With small volume, light weight, high sensitivity, fast response, good linearity, etc.Used independently can be used for measuring weight or load, cooperate with SC - 542 - a - 2 h or SC type tension control device, automatic tension control, the printing, packaging, textile, metal, steel and other industries in the process of processing ideal tension testing and control device.

Tensionsensor selection

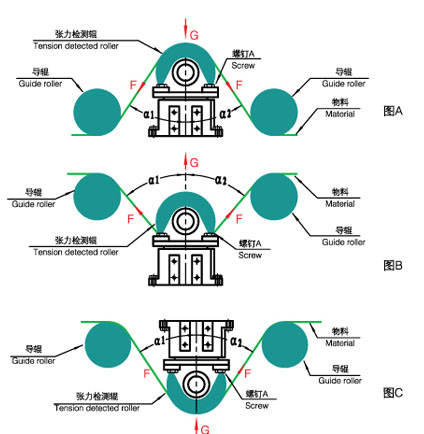

1. The installation method and the load
Due to the tension sensor has a base, suspension, wall, such as installation,
load and oppression and amplify the different direction, now put them before
the combination and load calculation formula is as follows:
Symbols that
G - load of tension sensor

F - material tension
W - tension test, the sum of the weight of the bearing
K - tension measuring roll coefficient (side) when installation
A. base installation scold load with oppression
G = F (cosine alpha 1 + cosine alpha 2) + W
B. the base installation and extension direction of the load
G = the -f (cosine alpha 1 + cosine alpha 2) + W

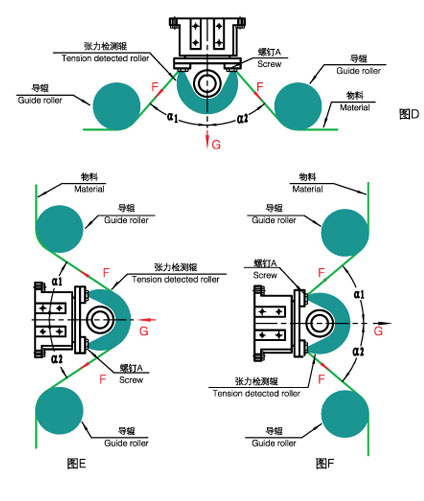

C. hanging installation direction load and repression
G = F (cosine alpha 1 + cosine alpha 2) - W
D. hanging installation and extension direction of the load
G = the -f (cosine alpha 1 + cosine alpha 2) - W
E. sidewall installation direction load and repression
G = F (cosine alpha 1 + cosine alpha 2) + KW
F. wall installation and extension direction of the load
G = the -f (cosine alpha 1 + cosine alpha 2) + KW
2. The selection of
Tension sensor selection for machinery at the maximum tension,
tension sensor is load Gmax (ACTS on the two sensor at the same

_______________________________________________________________________
