ZJ-FZ Flange static torque sensor

Share

หมวดหมู่ : Torque speed sensor

Share

ZJ-FZ flange static torque sensor are widely applied for testing machine, torque wrench, steering engine, electric actuator, valve, hydraulic and static torque test system,etc. With excellent stability, high measurement accuracy as well as very high performance cost ratio, this product is praise

Technical index

1.Frequency response:100μs
2.nsulation strength:200MΩ(100V)
3.Power supply: DC12~24V, current≥50mA
4.Output signal: current4~20mA, voltage 1~5V,
square-wave frequency 10KHz/±5 KHz (optional)
5.Internal resistance of torque sensor: 1000Ω

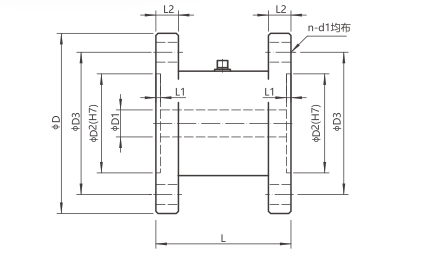

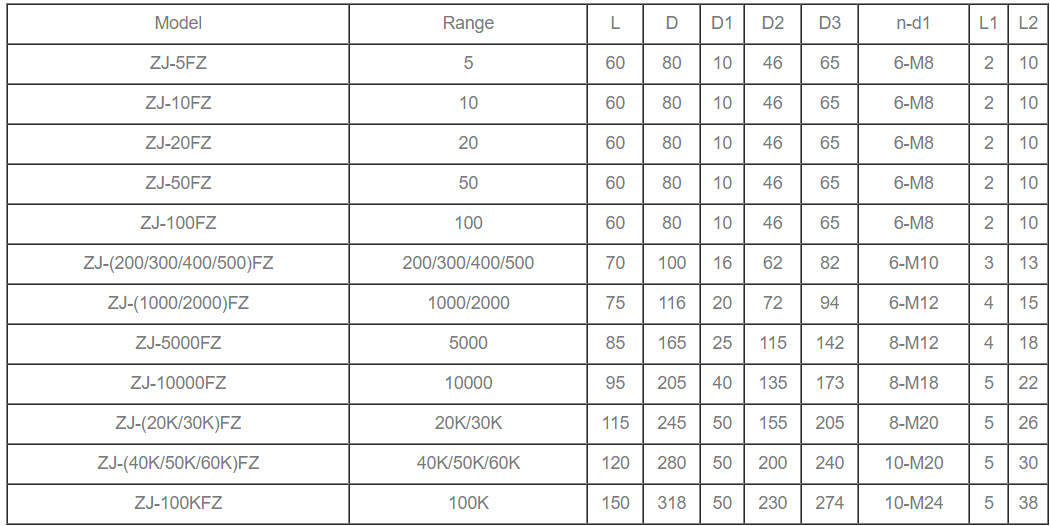

INSTALLATION SIZE CHART
