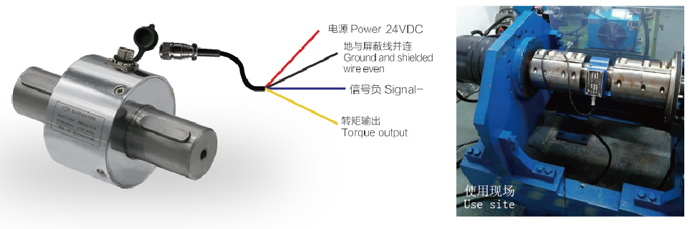

ZJ-Z axis static torque sensor are widely applied for testing machine, torque wrench, steering engine, electric actuator, valve, hydraulic and static torque test system,etc. With excellent stability, high measurement accuracy as well as very high performance cost ratio, this product is praised by the users.
1. Frequency response:100μs
2. Insulation strength:200MΩ(100V)
3. Power supply: DC12~24V, current≥50mA
4. Output signal: current4~20mA, voltage 1~5V,
square-wave frequency 10KHz/±5 KHz (optional)
5.Torque sensor resistance: 1000Ω

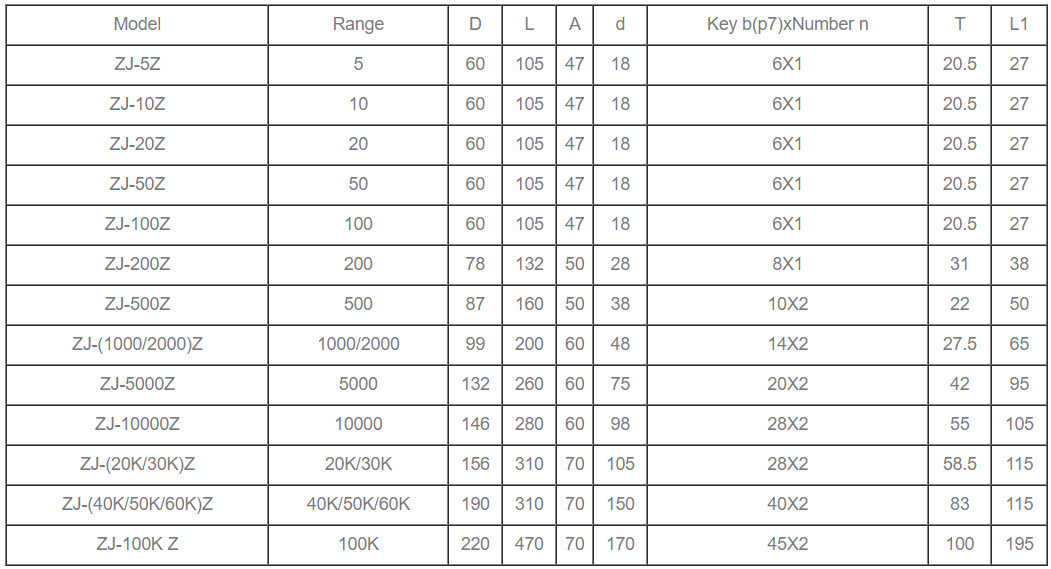

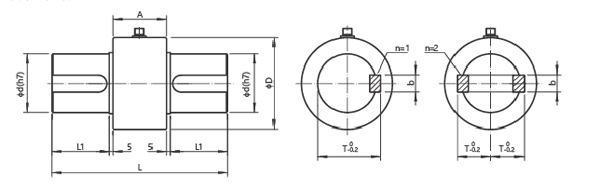

INSTALLATION SIZE CHART
