Accessories For Portable Hardness Testers

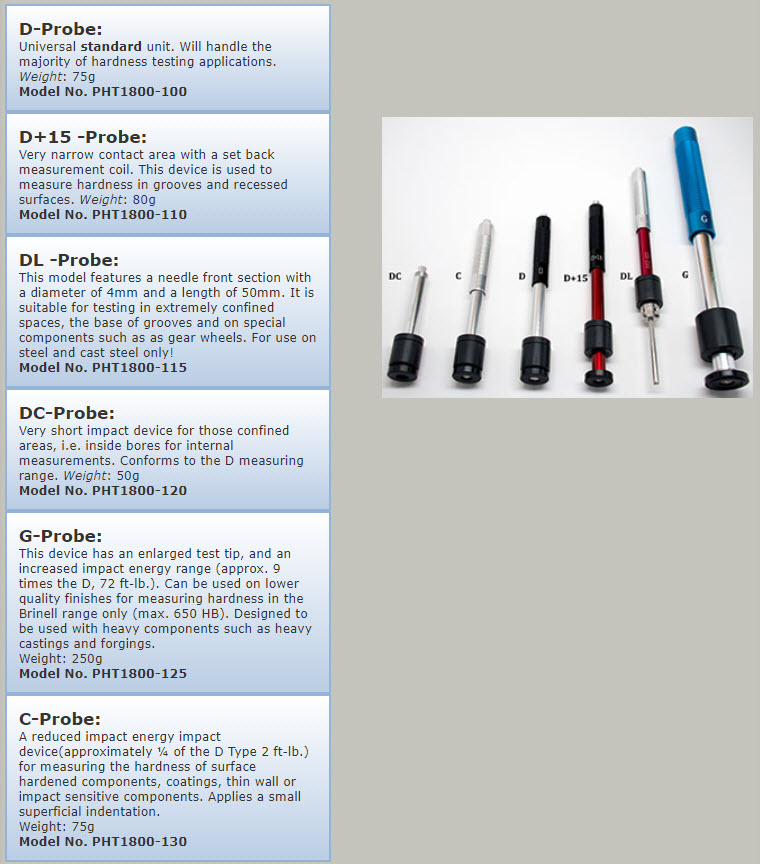

Impact Devices:

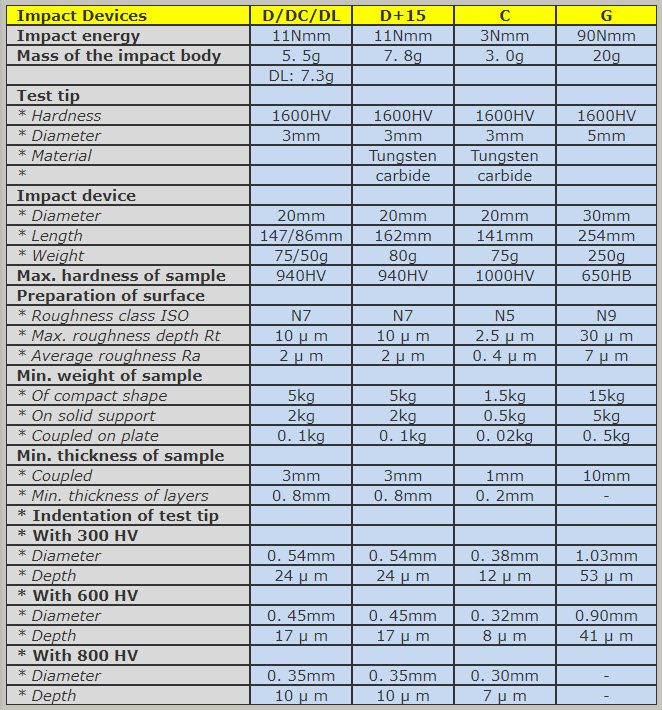

Technical Data for Portable Hardness Tester Impact Devices
Note: Impact device D is standard device on all models. Specification is identical.

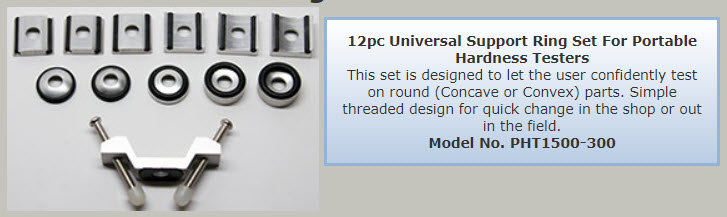

For Testing on Round Parts

Set Consist of: 1pc Universal Stand plus the following:

Concave Support Rings

Convex Support Rings

Calibrated Leeb Test Blocks
For all Leeb Portable Hardness Testers

HLD Test Block (for use with all “D” type Impact Devices) Range: 750-800 (50’s HRC)

Model No. PHT1300-01
Model No. PHT130001-CERT: NIST Certified (HRC)

HLD Test Block (for use with all “D” type Impact Devices) Range: 590-670 (40’s HRC)

Model No. PHT1300-02
Model No. PHT130002-CERT: NIST Certified (HRC)

HLD Test Block (for use with all “D” type Impact Devices) Range: 490-570 (20’s HRC)

Model No. PHT1300-03
Model No. PHT130003-CERT: NIST Certified(HRC)

HLD Test Block Double Sided (for use with all “D” type Impact Devices) Range: 750-800 (60’s HRC)

Model No. PHT1300-05

Leeb Test Blocks for “G” Impact device
HLG Test Block (for use with large “G” Impact Device)

Model No. PHT1100G-01
Model No. PHT1100G-CERT: ASTM Certified(Brinell)
