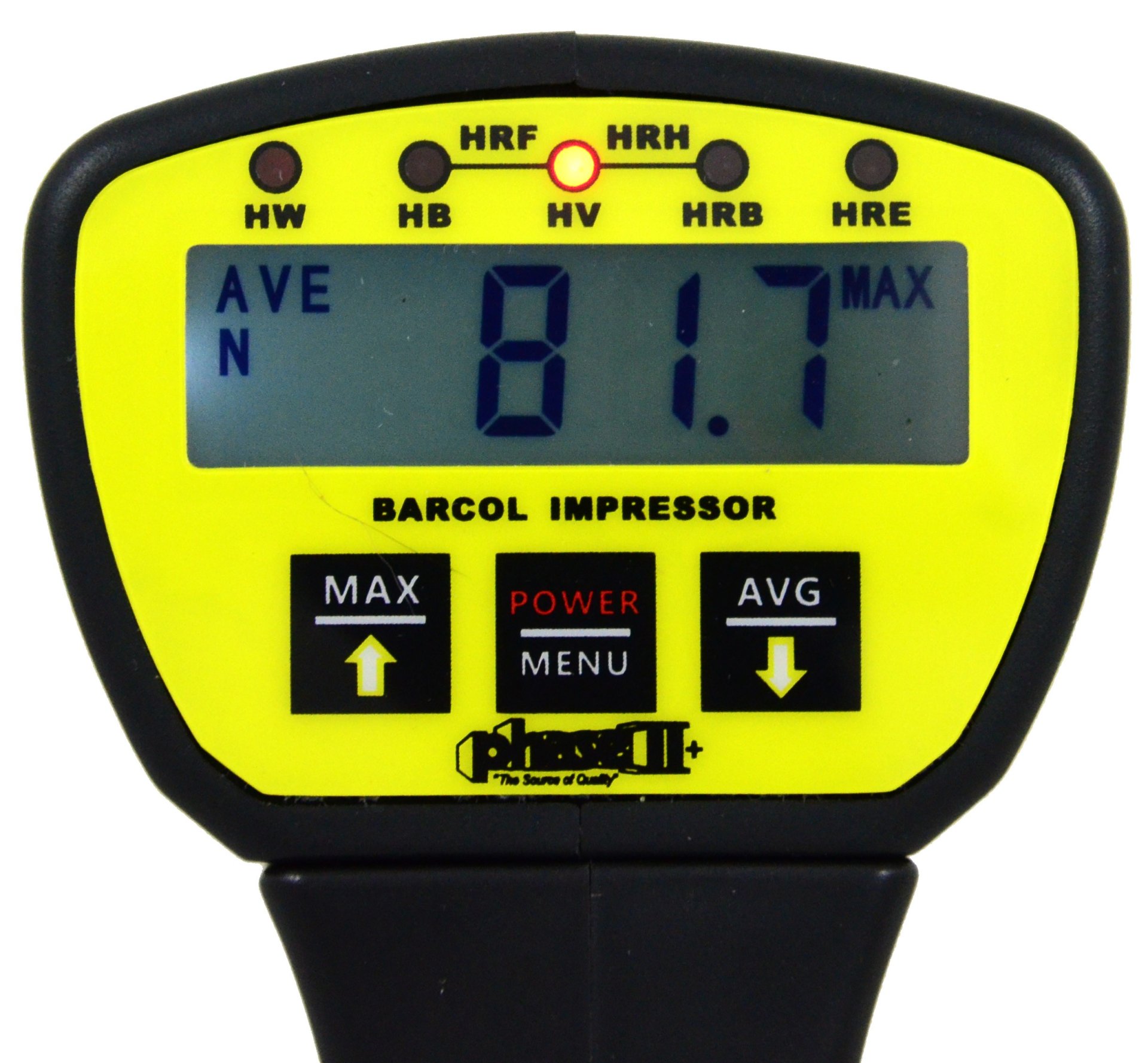

Digital Barcol Impressor(PHT-5100)

Share

หมวดหมู่ : Portable Hardness Tester

Share

Model No: PHT-5100

 The PHT-5100 is a digital Barcol Impressor hardness tester that is easy to use and ideal for measuring hardness of soft metals and other similar materials. Instant readings in Brinell (HB), Vickers(HV), Webster Hardness(HW), Rockwell Hardness (HRB, HRE, HRF, HRH)

Features:
Test soft metals such as aluminum and its alloys, brass, copper, etc.
Approximate range 25 to 150 Brinell (10 mm ball, 500 kg load)
Digital Resolution: 0.1HBa (HBa = Barcol Hardness)
Measurement Range: 0-100HBa (Equivalent to Brinell 25-150)
Repeatability: +/-2HBa
Hardness Scale Selection
Max Value Hold
Average Setting
Uses 2 –AAA batteries

PHT-5100 includes base instrument, 2-spare points, 2 calibration blocks, Adjustment wrench and point setting standard in a fitted carry case.
