LD Series  Electromagnetic Flow meter is fully comprehensive (all intelligence) which is developed in using the advanced technology from domestic and foreign countries and consisted of 4800-type flow sensor and 4800-type smart converter supporting. It is widely used in water (tap water, industrial water, and sewage treatment) metallurgy, chemical, textile, food, paper, power, pharmaceutical and other industrial areas. It applies to measure (is fit for the measurement of ) the volume flow of conductive medium including the acid, alkali, salt solution, slurry, pulp, paper pulp, waste water.

LD  Electromagnetic flow meter
Medium
Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc
Diameter
DN6~DN2200mm
Accuracy
±0.5%
Medium temperature
<60℃
Nominal pressure
GB 0.6MPa (DN700~DN2000)
GB 1.0MPa (DN200~DN600)
GB 1.6MPa (DN6~DN150)
DIN PN16,PN25,PN40,PN63
JIS10K,20K,40K
ANSI Class150,Class300,Class600, others can be customized
Flow rate
0.3~10m/s
Straight pipe required
Upstream ≥5DN,downstream ≥3DN
Electrode
316L (Suitable for domestic water, industrial water, raw water, underground water, sewage, etc.; not applicable to acid and alkali salt)
Lining material
Chloroprene rubber(CR), polyurethane rubber(PU)
Installation way
Carbon steel flange (standard), Stainless steel flange(optional)
Body material
Carbon steel (standard),Stainless steel(optional)
Power supply
220VAC/24VDC/lithium battery
Signal output
Pulse and 4~20mA; (if use lithium battery, without signal output)
Communication
RS485,GPRS,Hart
Explosion-proof
EXdeibmIICT3-T6
Protection proof
IP65 (compact type); IP67,IP68(suitable for remote type)
Work environment
Ambient temperature:-20~+60℃,Ambient humidity:5%~90%
Power
<20W

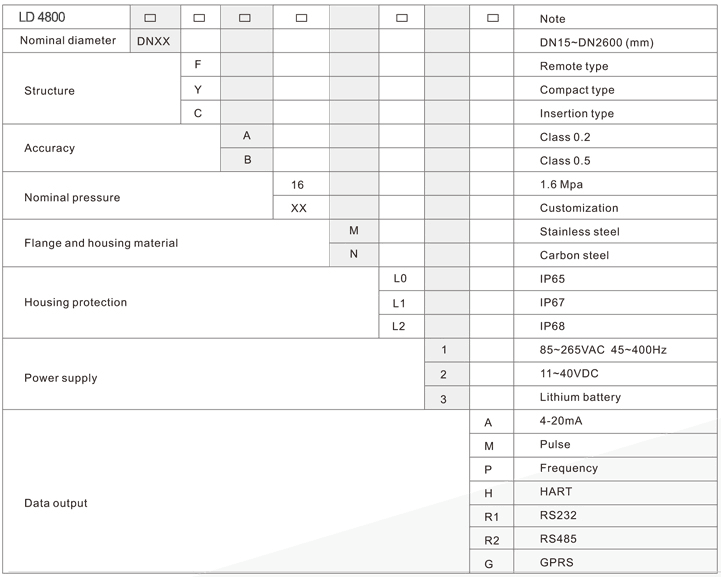

LD Series Electromagnetic flowmeter
