L704 Submerible Fuel Diesel Oil level transducer

Share

Share

L704 series fuel pressure level transducer with high stable and reliable, which use USA GE pressure CHIPS and high accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user easy and convenient application in the local working place. The special cable connects with housing, can be immerged into the media for a long time.
L704 designed incorporating with monolithic computer technology and sensor digital conversion technology, which core component adopts 24-bit AD MCU micro-processor to ensure high quality of the transducer relaying on its strong function and high speed operation capacity.

IP68 protection grade, waterproof and dustproof
316 L flush diaphragm, all welded stainless steel housing
Anti-explosion and anti-blogging unique design process
Impact resistance and disturbance
1.5 times range standard overload.

Range: 0~1 M……200 M H2O optional
Output :4~20mA,0~5V/0.5~4.5V;RS485 ,RS232,Hart
Power supply:+12VDC~+36VDC
Medium compatible:316L SST, PTFE,Titanium Alloy
Accuracy :0.15%F.S,0.25%F.S, 0.5%F.S optional
Working temperature:-30℃~+85℃
Cable: PUR cable with vents
Certificate:CE,Excia CT6 Ga ,ATEX,RoSH
Application:Petrol, Diesel,Fuel etc

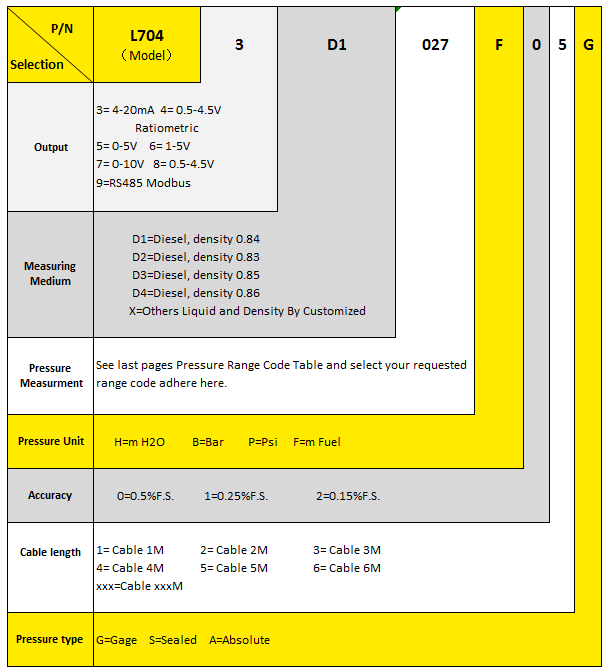

Datasheet L704 Fuel Level Transmitter MAC Sensor
