Six Channel Charge Amplifier
Model YE5853

YE5853 charge amplifier is a kind of multi-channel modular charge amplifier, connecting  with piezoelectric acceleration sensor as a test system, to measure the physical parameters, such as vibration, shock,  be widely used in mechanical manufacture, power, aviation, navigation, construction, chemical explosion and other departments.

This instrument adopts multi channel interpolation type structure, each instrument contain 1 ∽ 6 measurement channels, so for multipoint tests, it is a best economy choice.

Features:
Rack-mounted multiple channel construction
Small dimension with high integration design
Three digit dial-in of transducer sensitivity  (1~10pC/unit)
Seven output gain settings
Five low-pass filter settings
Low noise and high accuracy
Wide frequency bandwidth (0.3 ~ 100kHz)
Overload indicator

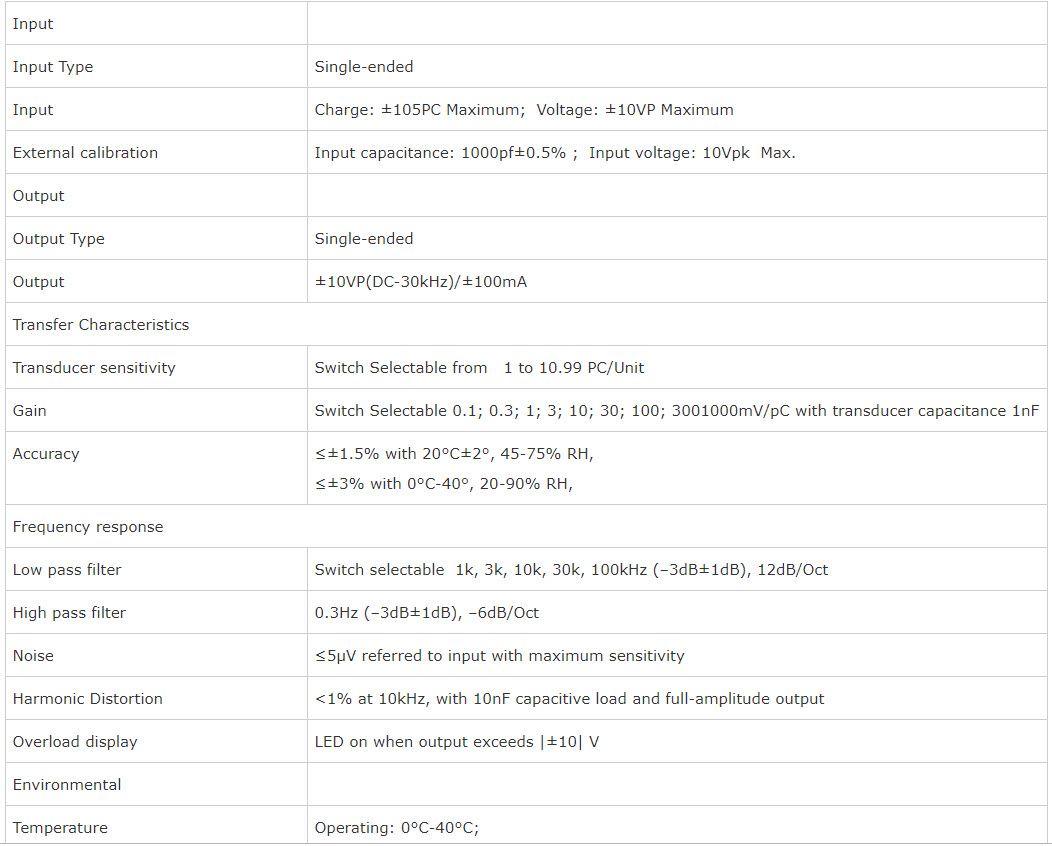

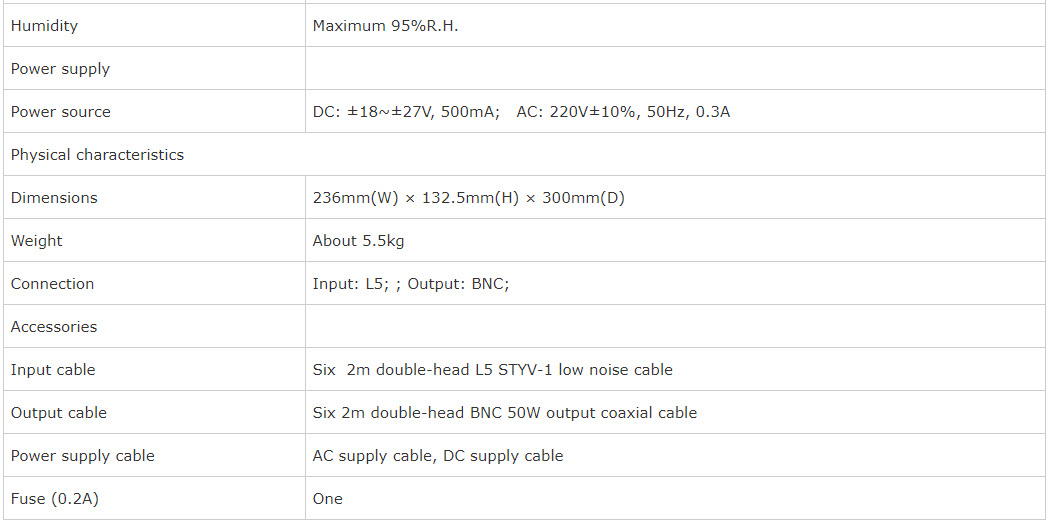

Specifications:
