Detailed description

Stack Actuators

Laminated type piezoelectric actuators using multi layer piezoelectric ceramic chip according to certain polarity, under the control of DC voltage scaling along the length direction.

Use high performance piezo ceramic material:

D33≥810

D31≥-420

εT33/ε0  5000

Operate Temp.:-20 ~ 60 ℃

Storage Temp.: -30 ~ 85℃

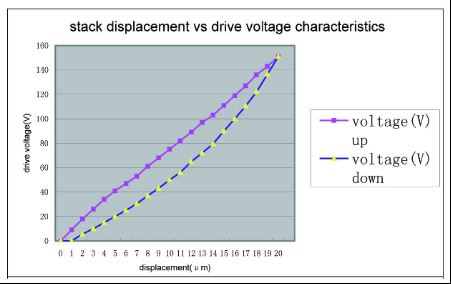

Curve of drive voltage and stack displacement (sample as per QDS5*5*20MM)

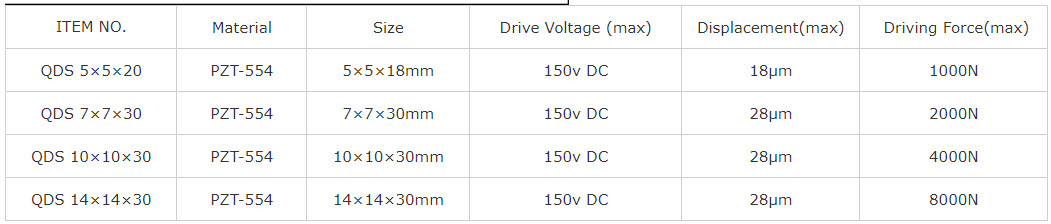

Product Specifications:

Special Dimensions Can Be Customized
